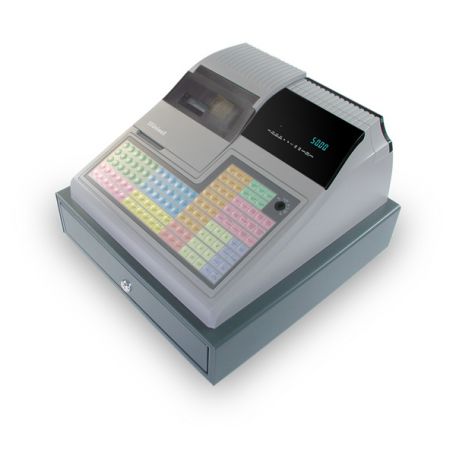

NX-5400 is a low cost machine made for general retail stores and various hospitality industries such as Food Court, Small Restaurant, Take Out Shop including Fast Food, etc.
The NX5400 has been designed as a high quality cash register that is feature rich yet very economical. It has been designed as a general purpose machine, the flat keyboard version is ideally suited for use in bars, cafe, quick service restaurants and bakery. The raised keyboard version is particularly suited to general retail stores and has the ability for bar code scanning.
A numeric pop up customer display, heavy duty receipt plus journal printer (45mm wide) and an integral cash drawer all come as standard with the NX5400.
The NX5400 comes network ready, it can be connected with up to 7 other terminals providing consolidated reporting across the entire system. In additional the NX5400 is also PC ready and can be connected to back office PC for simplified programming and reporting.
The NX5400 has been designed as a high quality cash register that is feature rich yet very economical. With a flat keyboard and clerk interrupt facility the NX5400 is ideally suited for use in pubs, bars, cafes, takeaways, bakeries and retail scanning outlets.
With 1,570 PLU's as standard, 21,666 PLU's maximum, 3 menu levels and 2 price levels you can be sure that you won't easily run out of capacity. In addition there are 3 modifier buttons that allow a product to be sold in 4 different sizes e.g. regular, small, medium and large.
The NX5400 comes with a numeric pop up customer display, heavy duty receipt plus journal printer (45mm wide) and an integral cash drawer.
Cash Control
At the end of each shift the financial report clearly identifies the value of money that has been taken by each method of payment - this is used to reconcile against the actual cash in drawer
Sales Analysis
The NX5400 allows you to monitor your sales mix, products can be linked to 10 main groups (wet, dry etc) and 64 sub groups (Bottle Beer, Draught Beer, Spirits etc). In addition products can be linked to a further 25 groups which could be used to track product sales by supplier.
Operator Analysis
Individual operator performance (up to 26) can be monitored allowing you to keep an eye on the most productive staff and those making the most " mistakes" . Up to 4 commission rates can be used providing managers with a way of giving incentives to operators.
Scanning
With an optional scanner attached, the NX5400 has the facility to register bar-coded items. Additionally, bar-coded items not found in the PLU database at registration, can be simply created and added to the file.
Promotions
Two % adjustment buttons allow you to run in house promotions and even a simple customer loyalty scheme. The adjustment feature allows you to give a customer a preset % discount of pre selected items.
Automate end of day routines
End of shift/day routines can be simplified by using one of the 4 arrangement buttons which allows you to setup a macro to automate key sequences.
Security
All reports, programming options and sensitive operations are available under key lock control.
Simple food ordering
In a pre payment food operation an order number or table number can be entered with a transaction, orders can be sent to kitchen printers with different products being printed on different kitchen printers. Up to 4 kitchen printers can be used e.g. starter, mains, drink.
System Features
The NX5400 comes network ready, it can be connected with up to 7 other terminals providing consolidated reporting across the entire system. In addition the NX5400 is also PC ready and can be connected to back office PC for smplified programing and reporting.
Supported by convenient programming tool "PLM 2000", you can start to use NX-5400 on the day of delivery!
| Printer | 2 sheet dot matrix printer, 3 lines/sec Receipt/Journal: 24 columns/line Validation: 55 columns/line Paper roll: 44.5 0.5 mm x 83 mm |
|
| Keyboard | Stroke key Flat key |
58 key positions 128 key positions |
| Display | Front (LCD) | 12 digits numeric x 1 line |
| Rear | 12 digits numeric x 1 line (standard) | |
| Standard Interface | RS232C x 1 | One of: PC communication, Scanner, RAM data transfer, Journal data transfer |
| RS485 x 1 | Inter Register Communication, Kitchen printer, Slip printer | |
| Optional Interface | RS232C x 2 | Scanner, Journal data transfer |
| Dimensions | 405 (W) x 423 (D) x 277 (H) mm with drawer | |
